Soil Settlement Gauge

Description

The SSG consists of a vibrating wire or fi ber optic pressure transducer housed in a corrosion-resistant stainless steel body. The housing can be attached to a base plate and connected to a reference station by a twin tubing fi lled with water (or anti-freeze solution) and fitted with stainless steel connectors. The  reference station consists of a sealed liquid-fi lled reservoir open to atmospheric pressure and located at a known elevation. The settlement or heave is measured relatively to the elevation of the reservoir. The SSG is robust and stable. It can be installed in boreholes, standpipes, soil or concrete. The settlement gauge can also be attached to structures for monitoring settlement. To ensure maximum performance, the twin tubing should be
flushed at regular intervals to remove air bubbles, and data should be compensated for temperature changes and changes in atmospheric pressure. For best results, de-aired water or antifreeze solution is recommended.

Feature

  • Easy to read
  • Wide range
  • Robust design for long-term monitoring applications
  • Manufactured with corrosion-resistant materials
  • Frequency signal easy to process and transmit over long distances
  • Fiber optic transducer available that offers immunity to EMI/RFI/lightning and higher accuracy and resolution

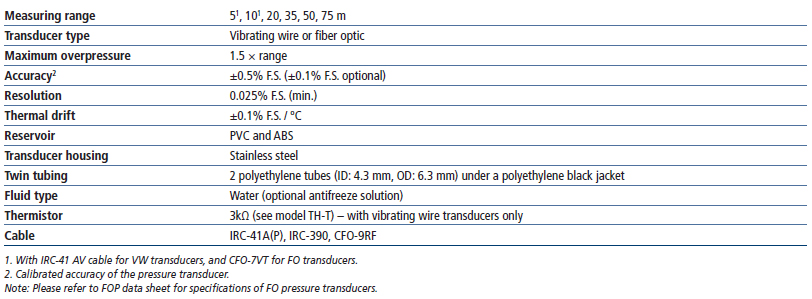

Spesification
