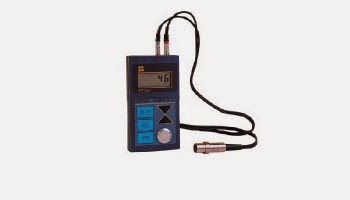

Ultrasonic Thickness Gauge TT100

Feature

• Portable size and easy operation
• Suitable for any metallic and non-metallic materials ultrasonic can go through
• Self-compensating of nonlinearity function is supplied for correction of pickup nonlineasity
• 10 measuring values can be recorded for TT100,TT110,TT130;100 measuring values can be recorded for TT140
• optional 2.5MHz, 5MHz and 7MHz transducers are available
• Clear 4-Digit LCD display with backlight
• 5 pre-set sound velocities for repeating applications
• mm / inch selectable
• TT100,TT130 and TT140 are suitable for thickness testing of various materials with sound speed range 1000-9999m/s
• TT110 and TT120 are easy-operation models with only two keys suitable for thickness testing of steel
• TT120: high-temperature model
• TT140:with backlight display and the memory reach up to 99

Spesification

	TT100
Measuring range	0.75 – 300.00mm (steel)
Measuring range for steel pipes	Min.3.0mm thickness ×Φ20 diameter
Diameter of transducer	Φ10 (standard) Φ6 (optional) Φ12(optional)
Display resolution	0.1mm
Calibration	4.0mm steel base plate integrated
Tolerance	±(1%H+0.1) mm (H means the thickness of tested piece)
Measuring units	mm/inch
Sound velocity range	1000-9999m/s
Display	4-Digital LCD with backlight							t
Surface temperature	-10? to +60?
Battery indicator	Low battery voltage indicator
Power supply	2 Pcs. AA batteries 1.5V
Operation time	250 hours
Dimensions	126mm×68mm×23mm
Weight		Approx.250 including batteries
